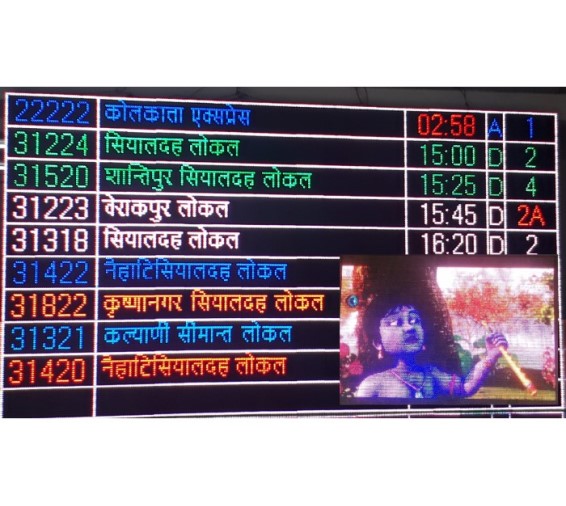

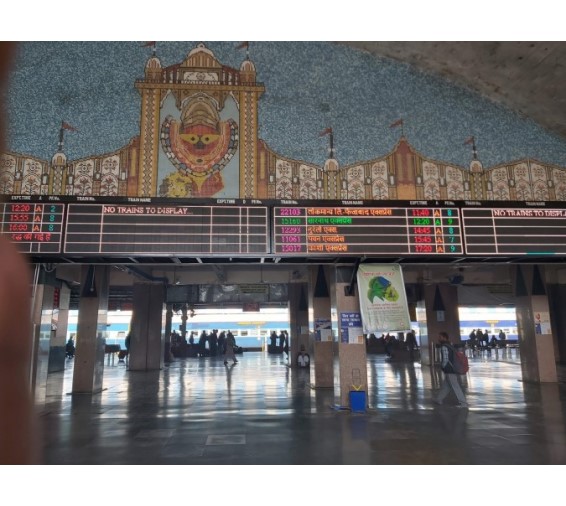

Patented RGB Video wall solution
EDS-India has the patented technology for True color RGB Video Wall Solution.

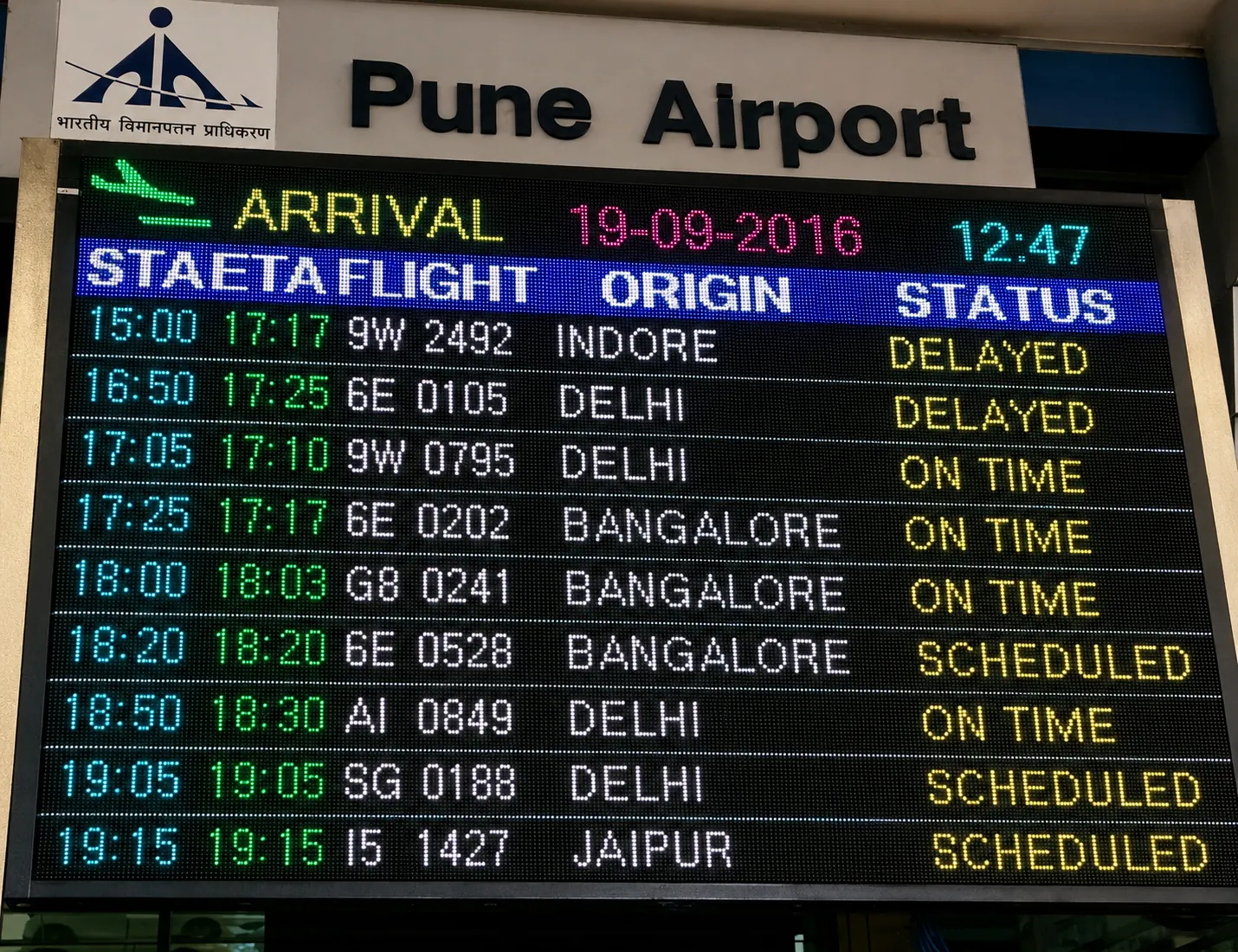

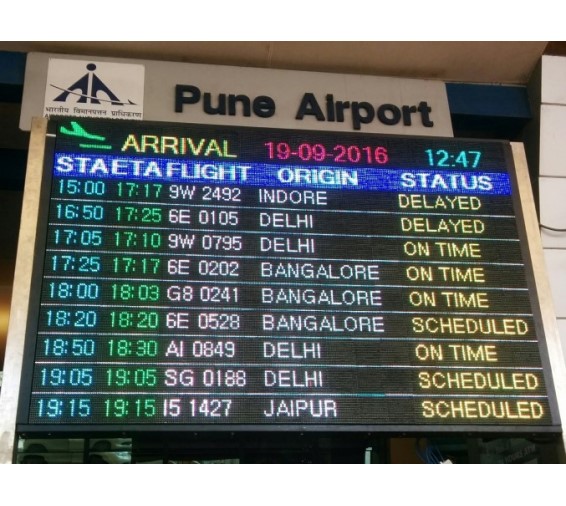

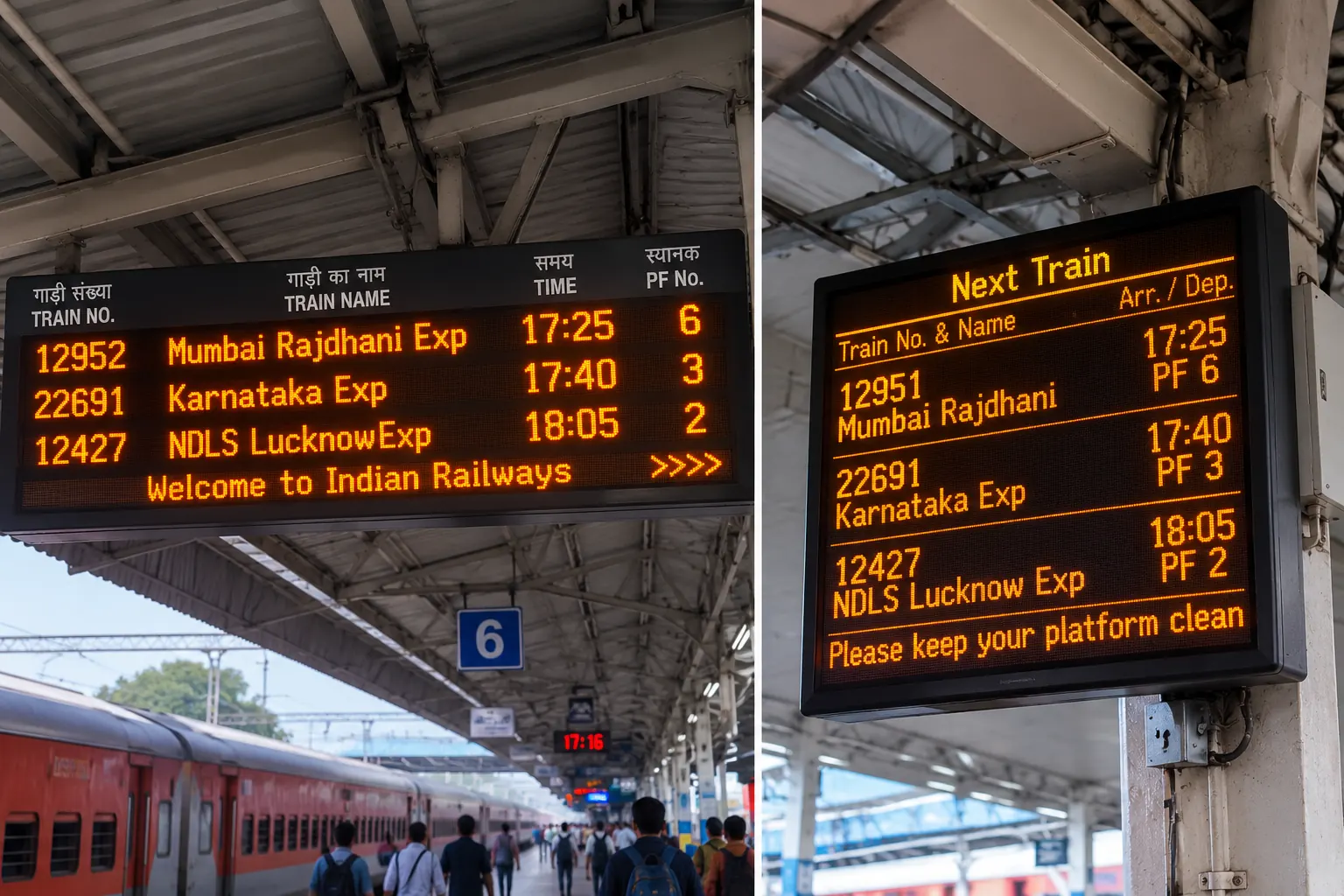

LED VIDEO WALLS
Features
| Display |
P16 Outdoor |
P10 Outdoor |
P10 Indoor |
P7.5 Indoor |
P6 Indoor |
| Pixel Pitch |
16 |
10 |
10 |
7.5 |
6 |
| Pixel Density |
3906 |
10000 |
10000 |
17777 |
27556 |
| Pixel Configuration |
1R 1G 1B |
1R 1G 1B |
3-In-1 RGB SMD |
3-In-1 RGB SMD |
3-In-1 RGB SMD |
| LED Life |
|
100000 |
HOUR |
|
|
| Module Dimension (mm) |
1280 x 1280 |
960 x 960 |
960 x 960 |
144 x 128 |
768 x 576 |
| Module Weight (Kg) |
50 |
45 |
38 |
42 |
26 |
| Power Consumption (W) / Module |
1000 |
800 |
580 |
640 |
450 |
| Input Power |
|
130V AC |
To |
270V AC |
|
| Best Viewing Distance (Feet) |
16 |
10 |
10 |
8 |
6 |
| Viewing Angle |
110° |
Horizontal |
|
60° |
Vertical |
| Brightness (NIT) |
12000 |
9000 |
6000 |
7000 |
2500 |
| Operating Temperature |
0°C - 80°C |
0°C - 80°C |
0°C - 70°C |
0°C - 70°C |
0°C - 70°C |
| IP Grade |
IP65(Back)/ IP66(Front) |
IP65(Back)/ IP66(Front) |
IP54(Back)/ IP54(Front) |
IP54(Back)/ IP54(Front) |
IP65(Back)/ IP65(Front) |
| Scanning |
1:4 |
1:4 |
1:8 |
1:8 |
1:16 |
Device USP
- Completely Indigenized Indian Design (Patented*)
- Highly Modular
- Digital Intensity & Contrast Control
- PWM based Drive technology to improve LED life span
- Lowest Power / Sq Meters
- Inbuilt Soft start to limit in-rush current and provide stable operation over life
- Temperature Controlled Force cooling for increased life of cooling fans.
Technical Specification
| Parameters |
Rating |
| Power Input |
130V AV to 3270V AC |
| CPU |
ARM Cotex-M4 180Mhz |
| External Memory |
16 MB Flash |
| Wired Communication |
Ethernet / LAN |

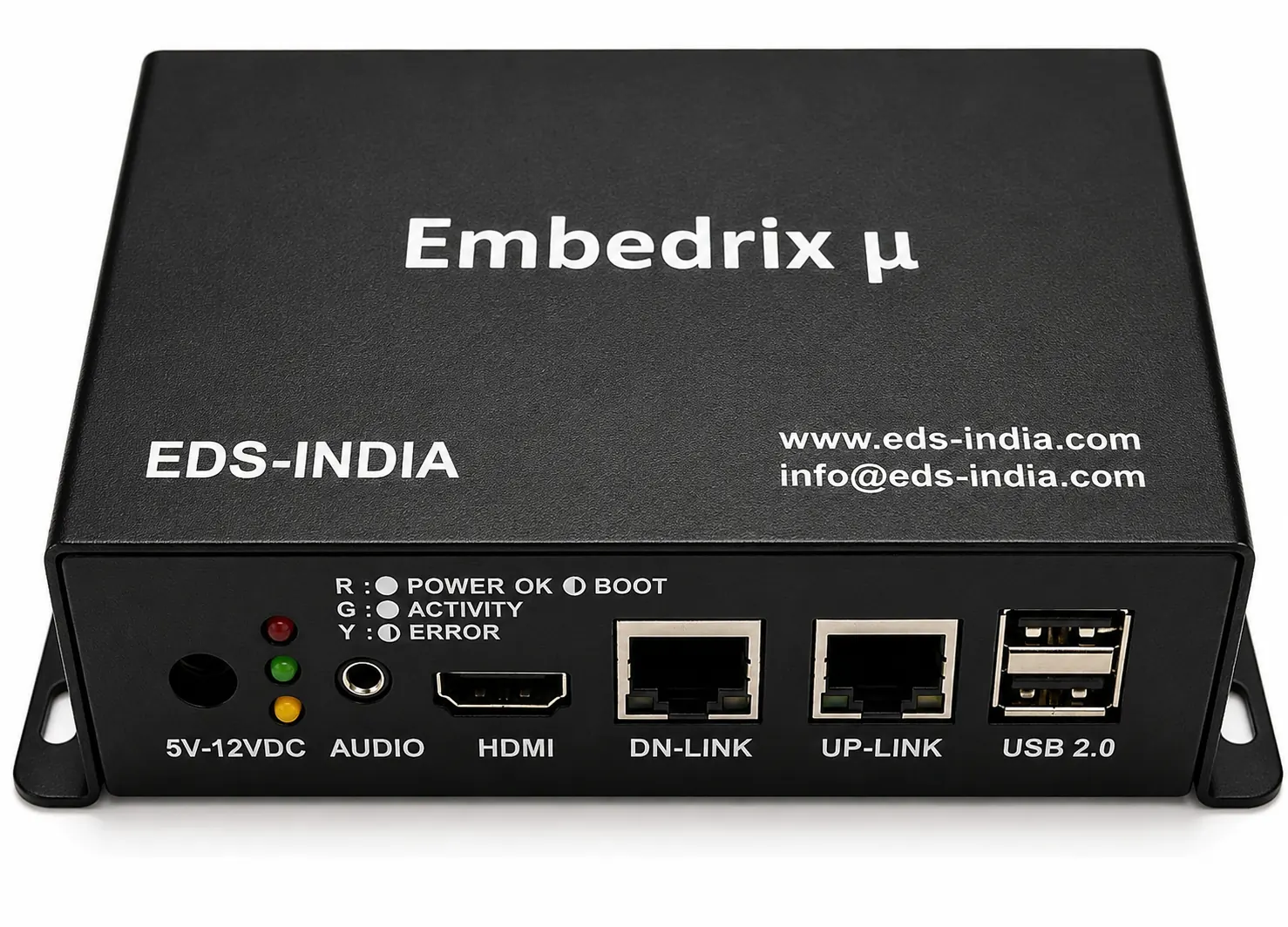

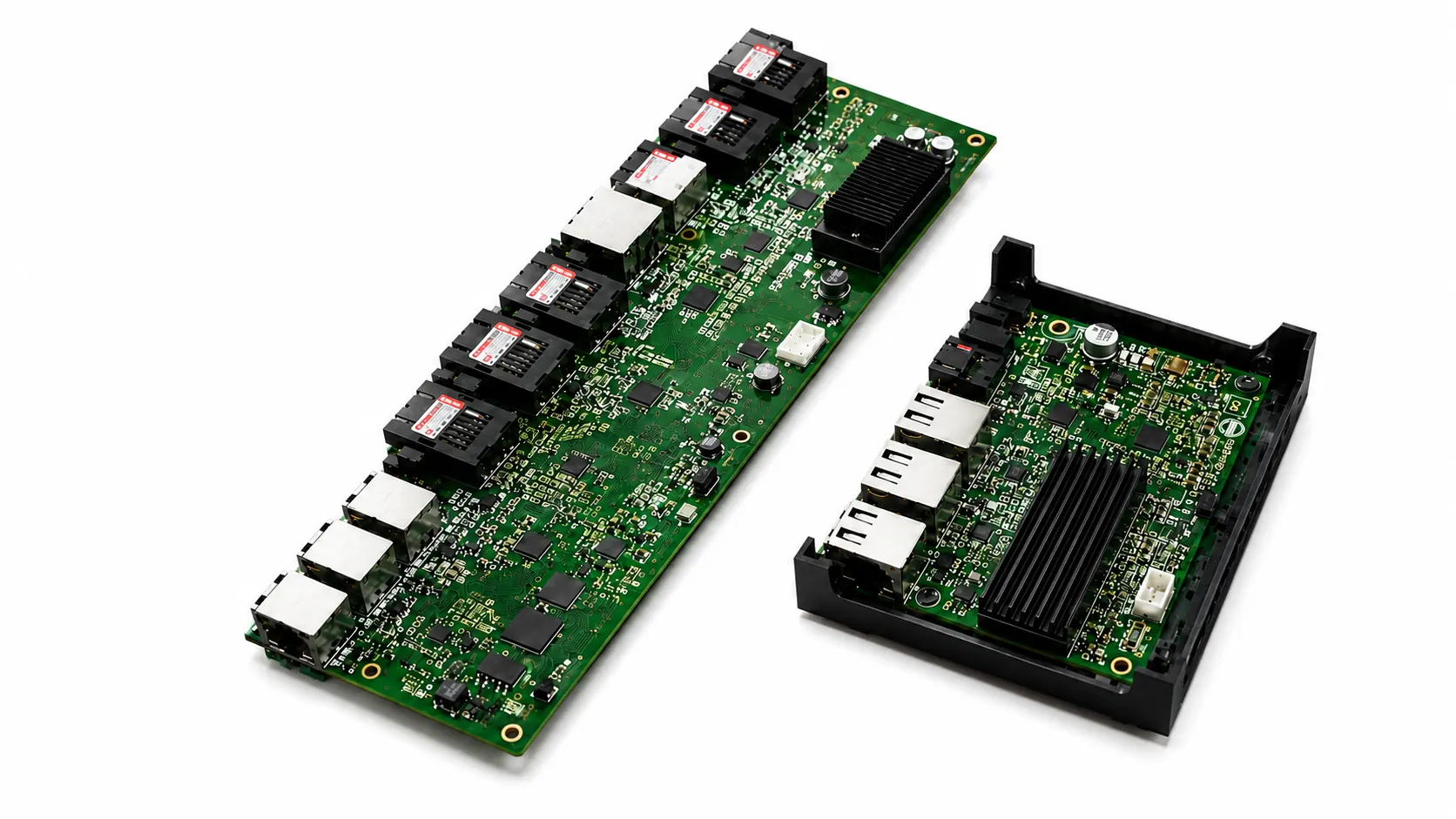

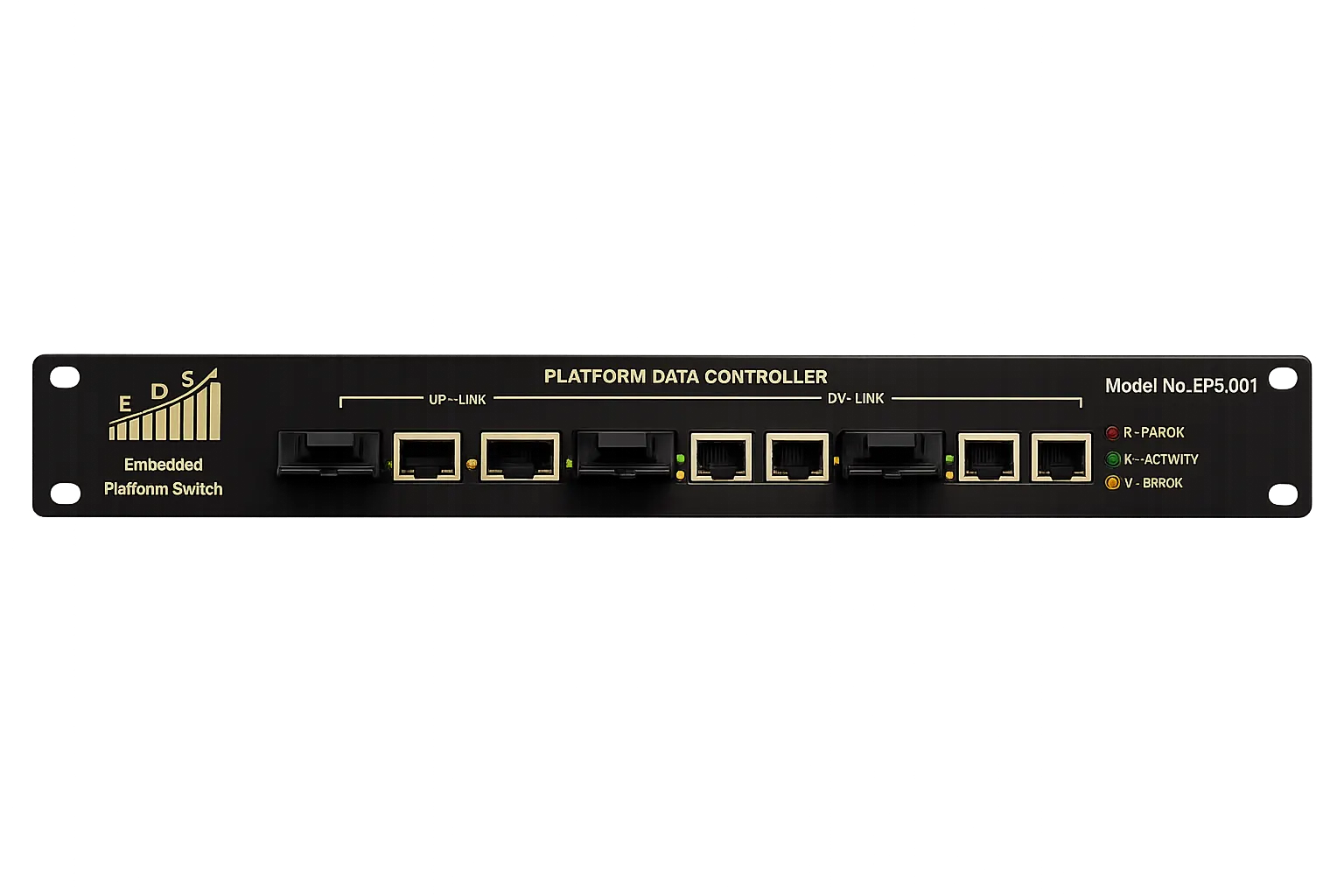

LED VMS Controller
Single Color LED VMS Controller
LED Variable Message Sign
Features
| Parameters |
LED VMS Controller |
| Input Power |
5V DC |
| Operating Temperature |
-20°C ~ +85°C |
| Storage Temperature |
-40°C ~ +85°C |
| Supported LED Matrix |
192 x 128 |
| Supported Scanning |
1:4 |
| Refresh Rate |
Upto 700Hz |
| CPU |
ARM Cortex M4 180MHz |
| Internal Flash |
Upto 1MB/td>
|
| Internal RAM |
Upto 256 KB |
| External Flash |
Upto 64 MB |
| Wired Communication |
10/100/1000 MBPS LAN |
| Wireless Communication |
Wi-Fi, GPRS |
Controller USP
- Single Control Card to drive 192x128 LED matrix
- 1:4 scanning rate with up to 700 Hz refresh rate
- Supported communication – LAN / Wi-Fi or GPRS
- Internal System Memory – 1MB, Storage Memory – 16 MB, SRAM – 256 KB
- Remote debugging to diagnose problems remotely
- Smart self diagnostic feature
- Remote control for display ON/OFF
- FOTA (firmware updating via GPRS)
- Can pick images/data from any TCP/HTTP/FTP servers via LAN / Wi-Fi / GPRS
- Multiple display effects
- Auto / manual paging
- Directivity – 90°(H) 45° (V)
- Visibility – 50 Meters or more
- Brightness > 5000 NIT
- LED life – 100000 Hours
Technical Specification
| Parameters |
Rating |
| Power Input |
5V DC |
| Current Consumption |
Normal ~ 80mA; Peak ~ 500A |
| Operating Temp (Storage Temp) |
-20°C to +85°C (-10°C to +85 °C) |
| CPU |
ARM Cotex-M4 180Mhz |
| External Memory |
Upto 64MB Flash |
| GSM /GPRS MODEM |
850/900/1800/1900 MHz Quad Band, Multi Slot (12/10/8), Class B GPRS Module |
| GSM Antenna |
Internal |
